The purification workbench is composed of several major components such as a box, a fan, a high-efficiency filter, and an operating switch. The box body is made of cold plate, etc., the surface is spray-painted, and the work surface is made of stainless steel. The purification unit adopts a fan system with adjustable air volume. By adjusting the working status of the fan, the average wind speed in the clean working area can be maintained within the rated range, and the service life of the high-efficiency filter is effectively extended.
Working Principle
The air passes through the primary filter, is pressed into the static pressure box by the centrifugal fan, and is filtered by the high-efficiency filter before being blown out from the air outlet surface to form a clean air flow. The clean air flow flows through the area that needs to be purified at a uniform cross-sectional wind speed, and the dust in this area is taken away, thus forming a highly clean working environment.
Installation and Use
This workbench should be placed in a workroom with a relatively clean environment (preferably in a primary clean room with a level of 100,000 or 300,000). Plug in the power and turn it on according to the function shown on the control panel. Before starting up, the working area and outer casing of the purification table should be carefully cleaned to remove dust on the surface. Normal operation can be carried out ten minutes after starting up.
Maintenance Guidelines
According to the actual usage, remove the primary filter and clean it regularly. The cleaning cycle is generally 3-6 months. (If it is not cleaned for a long time, dust accumulation will affect the insufficient air intake and reduce the cleaning effect.)
When the ideal cross-sectional wind speed still cannot be achieved after normal replacement or cleaning of the primary filter air filter, the working voltage of the fan should be adjusted to achieve the ideal uniform wind speed.
Generally, after use, when the fan operating voltage is adjusted to the highest point and still cannot reach the ideal wind speed, it means that the high-efficiency filter has too much dust and must be updated in time. The general service life of high-efficiency air filters is eighteen months.
When replacing the high-efficiency air filter, you should pay attention to whether the model, specifications and dimensions are correct, install it according to the arrow wind direction, and pay attention to the surrounding seal of the filter to ensure that there is absolutely no leakage.
Key Features
1. The box body adopts cold-rolled steel plate spraying process, and the appearance is exquisitely sprayed.
2. The flip-type glass door limits the height of the work area, and the double-sided perspective window design provides better lighting effects.
3. Interlocking function of lighting and sterilization system, with spare socket design, safe and convenient to use.
4. The control system adopts intelligent microcomputer control, with a blue display screen and digital indication.
5. Built-in HEPA high-efficiency filter integrated design, clean airflow covers the entire work area.

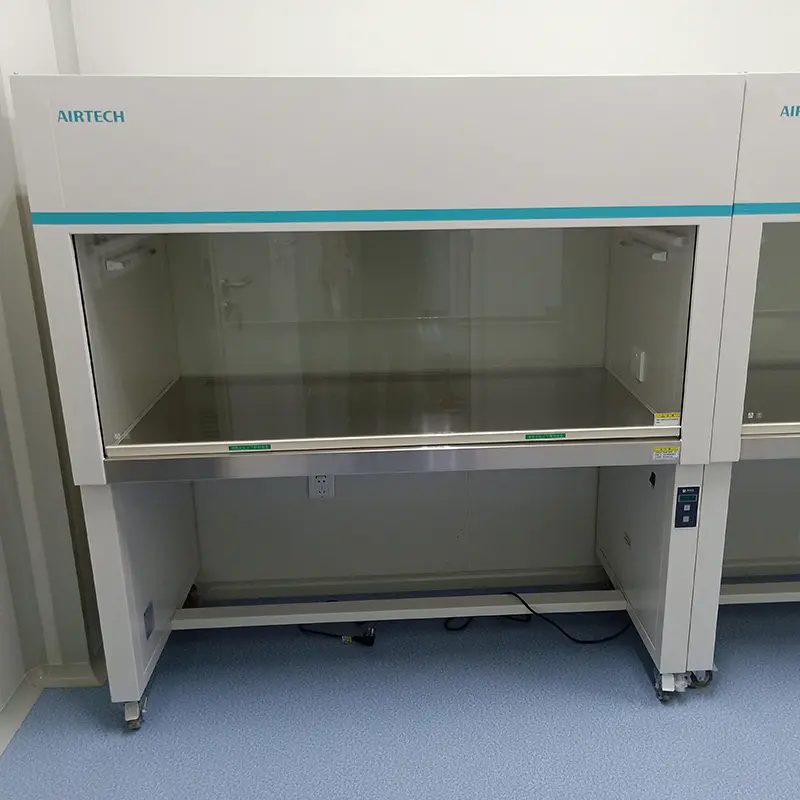

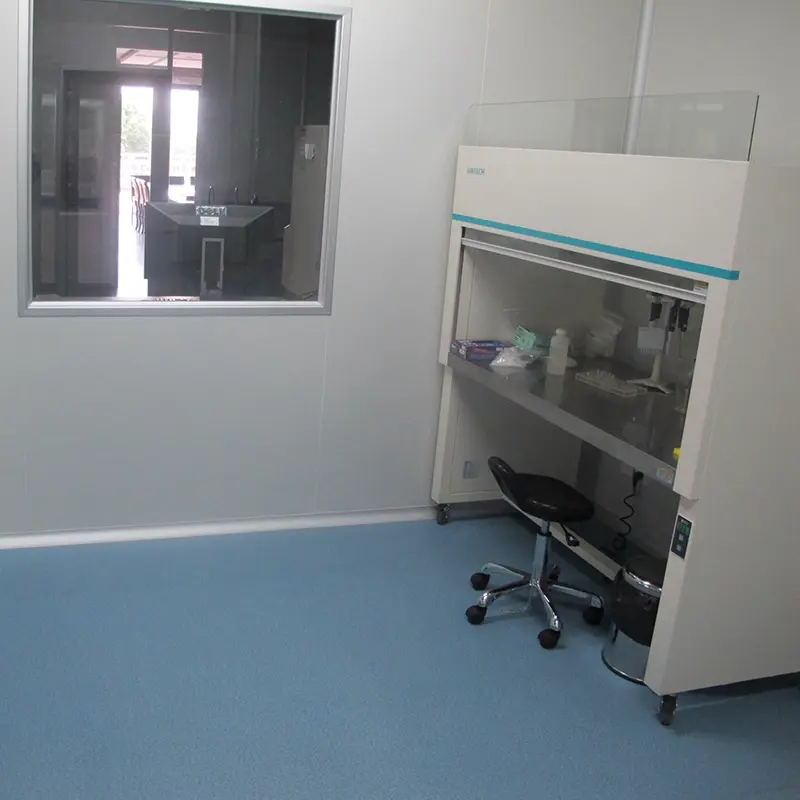

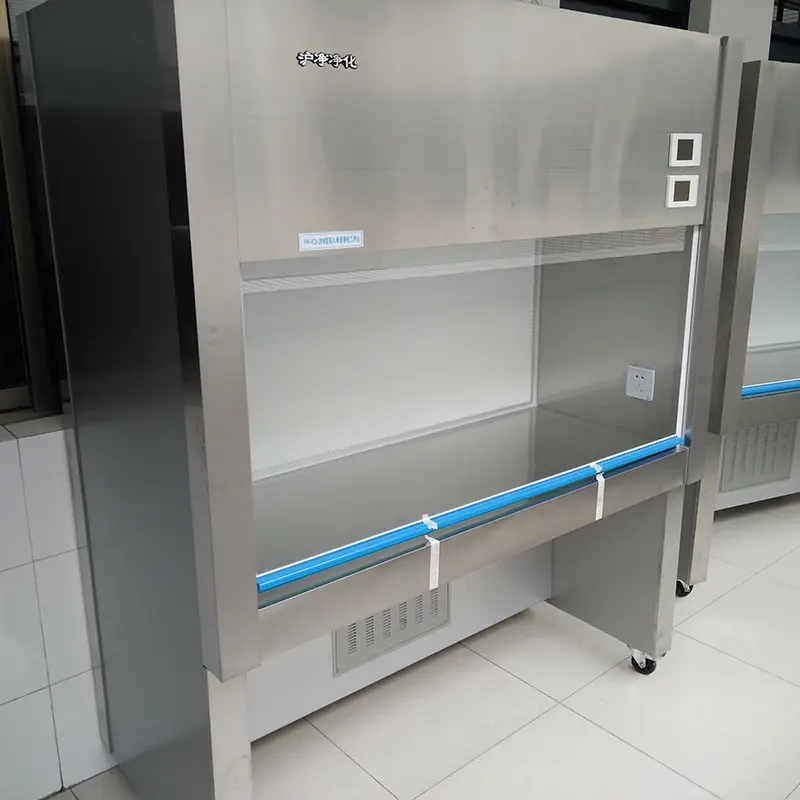

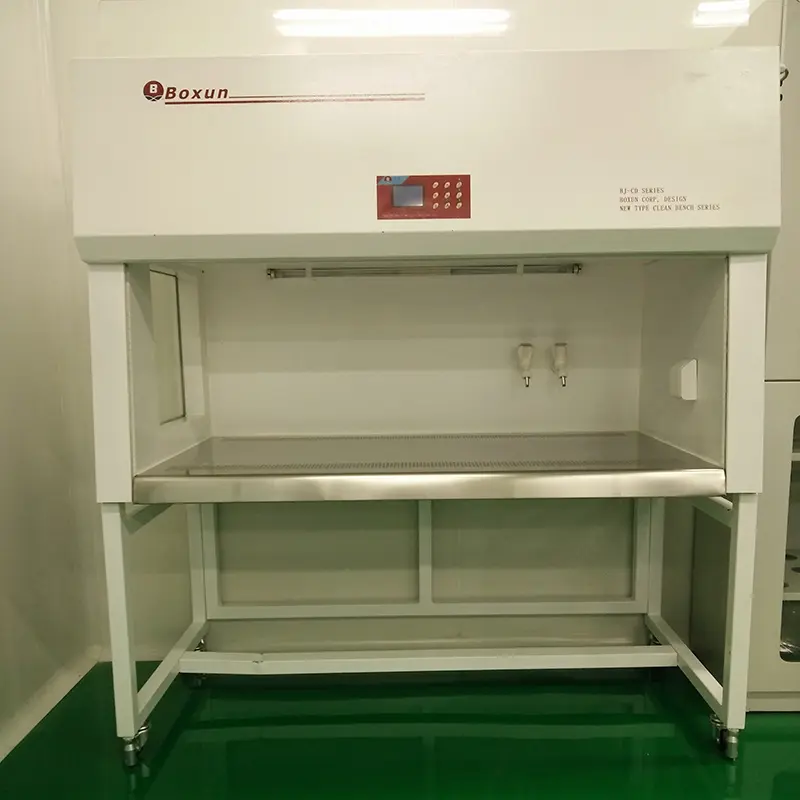

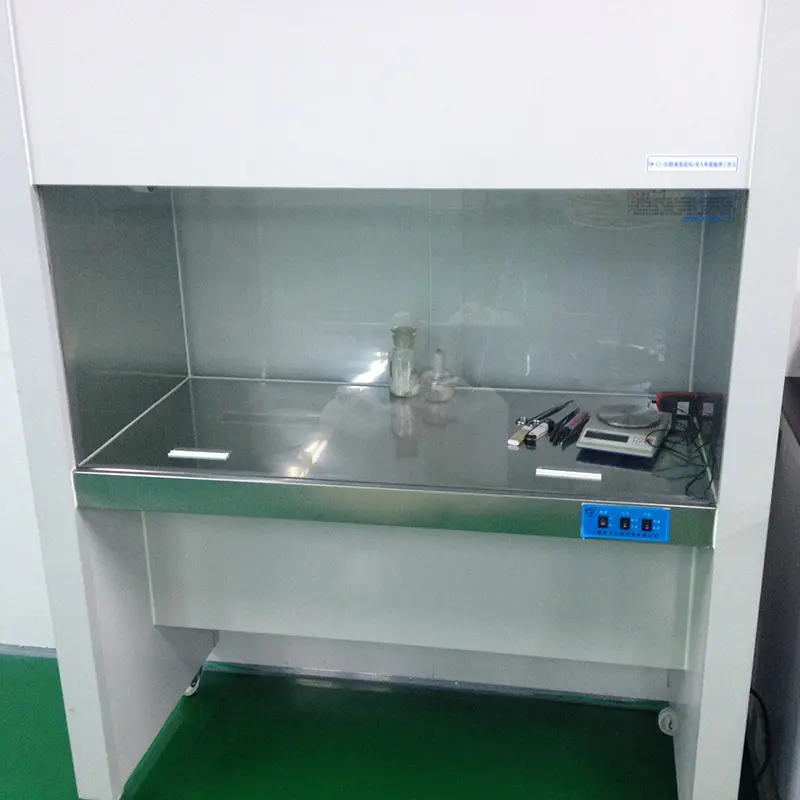

Product Display
Frequently Asked Questions
What is the main function of the purification workbench?
It creates a highly clean working environment by filtering air through a HEPA filter and providing a uniform airflow to remove dust and particles from the work area.
How often should I clean the primary filter?
The primary filter should generally be removed and cleaned every 3 to 6 months to prevent dust accumulation from reducing air intake efficiency.
What is the typical service life of the HEPA high-efficiency filter?
The general service life of a high-efficiency air filter is approximately eighteen months, depending on the frequency of use and the cleanliness of the environment.
Where is the best place to install the workbench?
It should be placed in a relatively clean environment, ideally within a primary clean room (level 100,000 or 300,000) for optimal performance.
What should I do if the wind speed is too low?
First, check and clean or replace the primary filter. If the speed is still low, adjust the fan voltage. If it remains low at maximum voltage, the HEPA filter may be blocked and needs replacement.
Are there safety features for the sterilization system?
Yes, the unit features an interlocking function between the lighting and sterilization systems to ensure safe and convenient operation.
