Wholesale Air Purifier Fume Hood Manufacturer, Supplier

Product name: Air purifier fume hood

Product model: JQXFG

Overall dimensions: 1900*800*620mm

Internal size: 860*764*540 (mm)

Overall dimensions: 1900*1000*620mm

Internal size: 970*885*512mm

Overall dimensions: 1900*1275*620mm

Internal size: 1172*866*522mm

Overall dimensions: 1900*1600*620mm

Internal size: 1172*866*522mm

Overall dimensions: 2080*1600*790mm

Internal dimensions: 1497*1194*692mm

Can be customized according to user requirements

Send Inquiry

Product Description

Ductless air purification fume hood products are specially designed to protect the safety of laboratory personnel during experimental operations. They can prevent operators from inhaling some toxic, harmful, pathogenic or unknown toxic chemicals during experiments. They are highly efficient. Purify the air in fume hoods and laboratories to provide safety protection for laboratory personnel.

Material Description

1. Metal parts Main material ≥1.2mm galvanized steel plate, epoxy resin electrostatic spraying, covered with durable chemical-resistant lead-free coating.

2. Front & Side panels Main material is ≥6mm acrylic panel, excellent weather and chemical resistance, colorless and transparent for full light transmission.

3. Control System Seven-inch LCD touch screen display, real-time temperature, humidity, fan and VOC concentration monitoring with integrated alarm.

4. PSC Fan Imported from the United States, 24 volt current, stable performance, ultra-quiet, no sparks or static electricity.

5. Filtration System ASTM standard high-efficiency system. Targets acidic and organic gases. HEPA filter efficiency reaches 99.995% for particles >0.3um.

6. LED Lighting 25W equivalent, no heat generation, energy-saving and environmentally friendly, does not affect experimental temperature.

7. Countertops Epoxy resin with excellent chemical stability, impact resistance, and high temperature resistance. One-piece transparent core.

Detailed Standards

Air treatment capacity: 230m3/h

Surface wind speed: 0.4-0.6m/s

Voltage/Frequency: 220V-240V / 50-60HZ

Power/Current: 42W / 3A

Noise Level: 40dBA-55dBA

Operating hole: Triangular (trapezoidal)

Number of filters: 4 groups-8 groups

Display Type: 7-inch LCD touch screen

Lighting: 1 set LED lights

Countertop: Epoxy resin

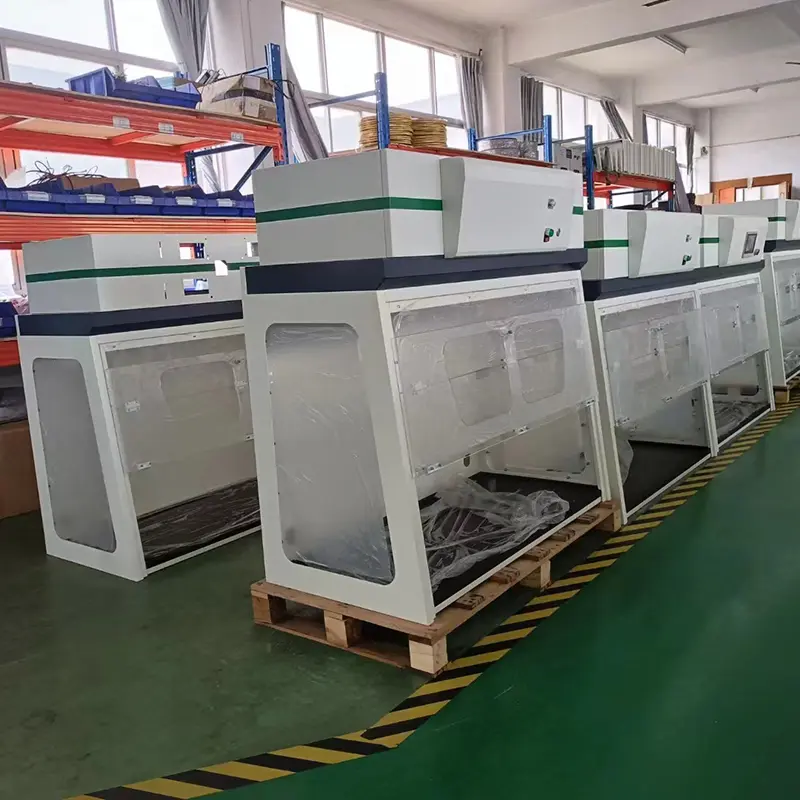

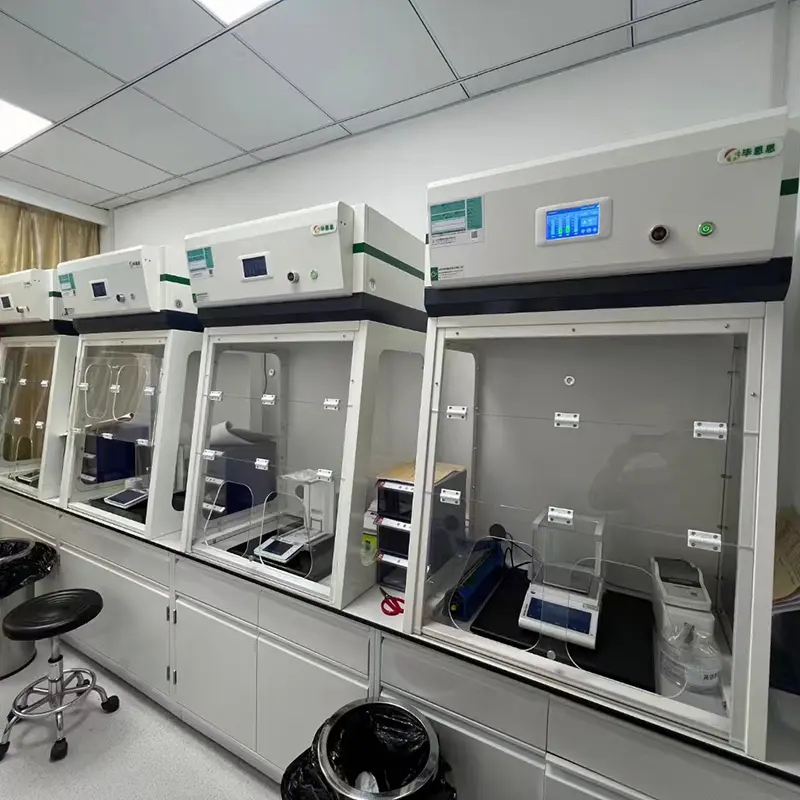

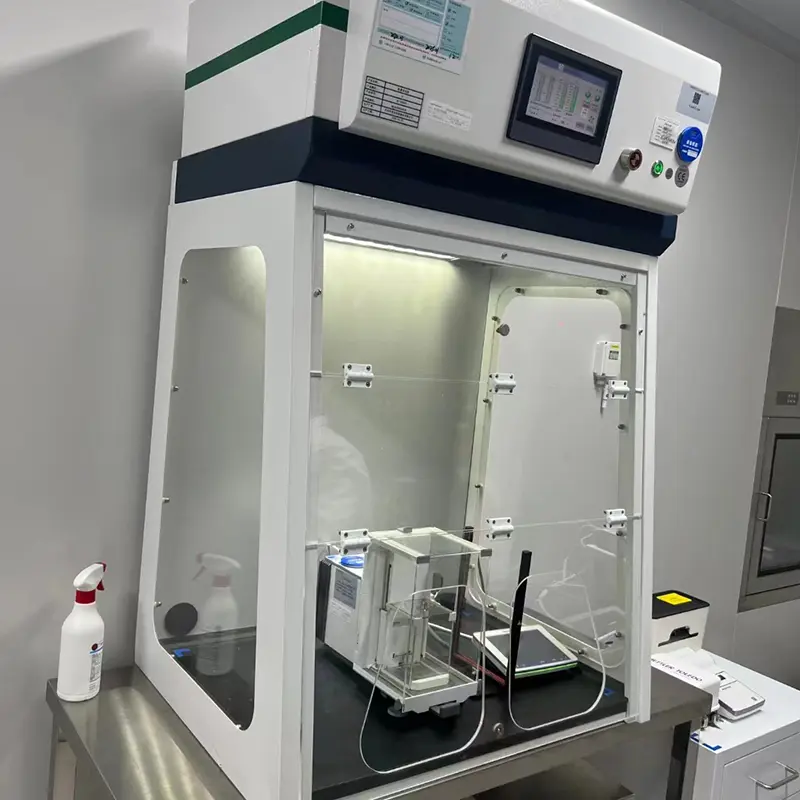

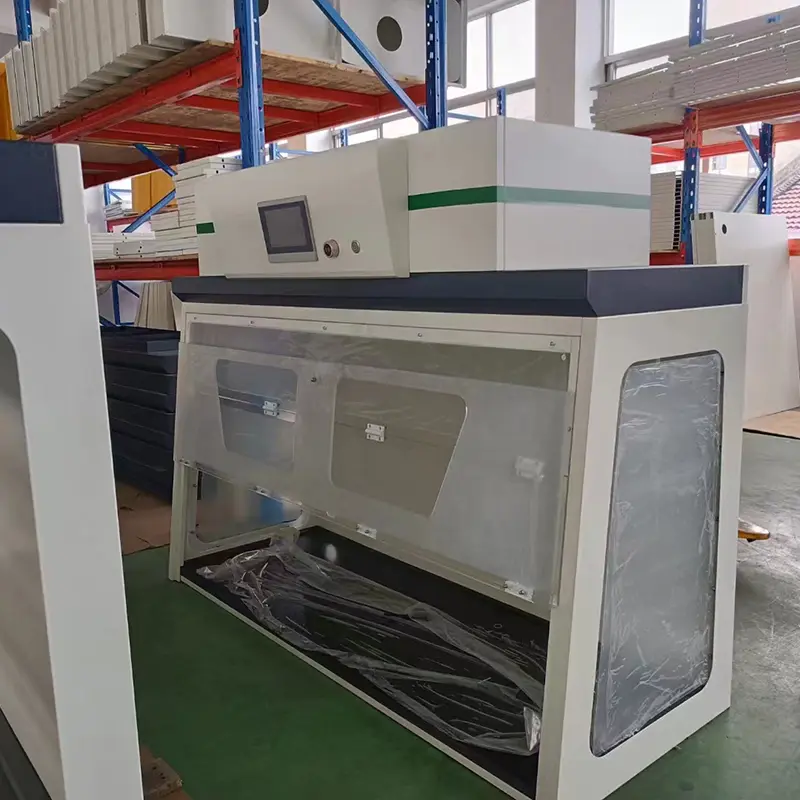

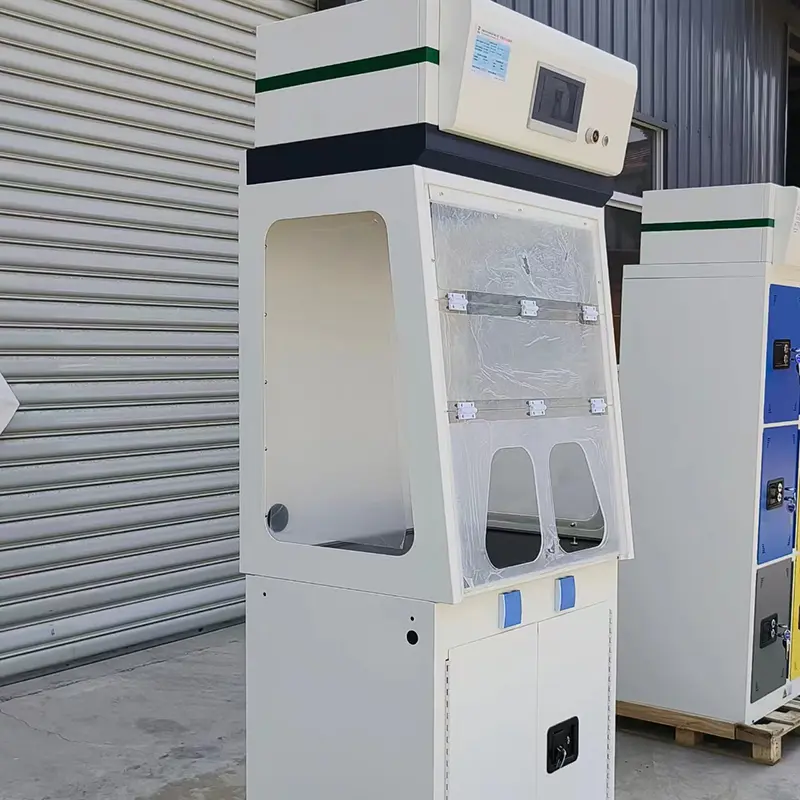

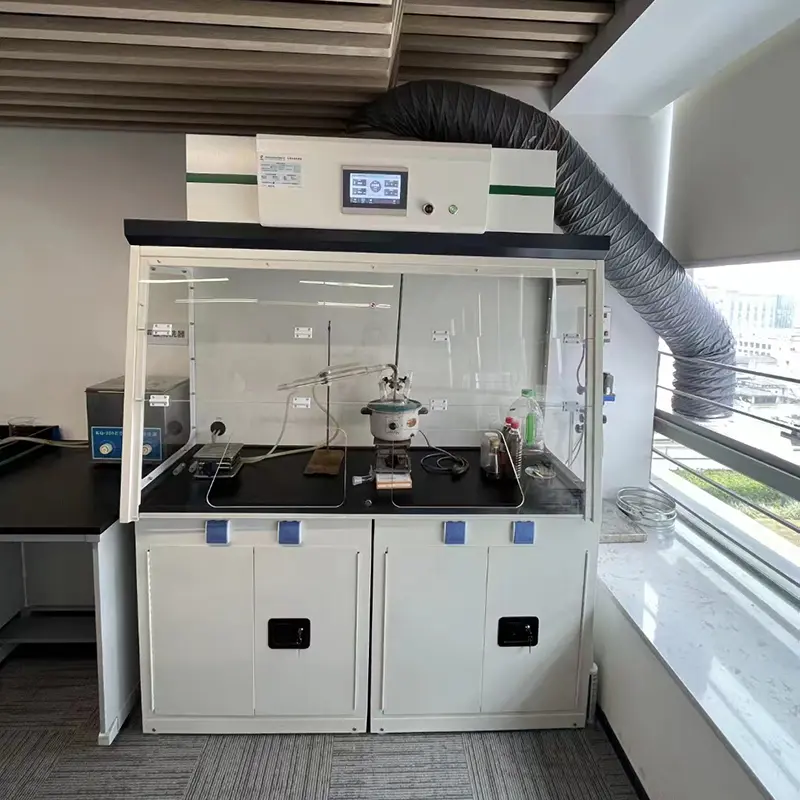

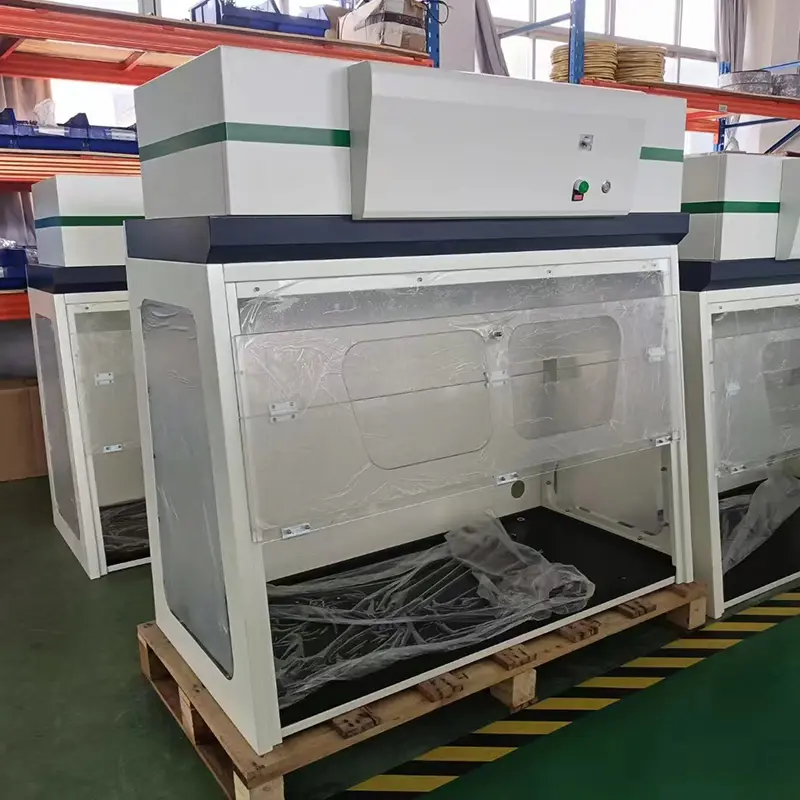

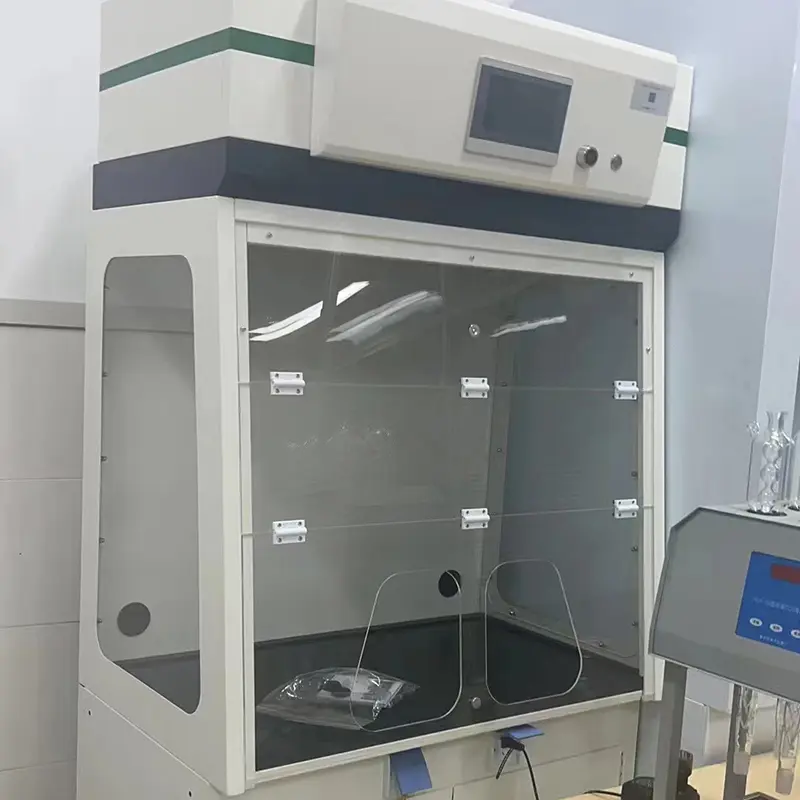

Product Display

FAQ - Frequently Asked Questions

1. What is the primary function of a ductless air purification fume hood?

It is designed to protect laboratory personnel by filtering toxic, harmful, or pathogenic chemicals and purifying the air within the fume hood and lab environment.

2. How efficient is the filtration system?

The system uses high-efficiency HEPA filters that reach a filtration efficiency of 99.995% for particles larger than 0.3um, following ASTM standards.

3. What parameters are monitored on the LCD screen?

The seven-inch LCD touch screen provides real-time monitoring of temperature, humidity, fan status, and VOC concentration, along with an integrated alarm system.

4. Is the lighting safe for sensitive experiments?

Yes, the LED lighting system does not generate heat, ensuring it does not affect the temperature of the experimental environment.

5. What are the advantages of the epoxy resin countertop?

Epoxy resin countertops offer superior chemical stability, corrosion resistance, impact resistance, and high temperature resistance without cracking or delamination.

6. Does the fan cause electrical interference?

No, the US-imported PSC fan operates on a 24-volt current and is designed to be ultra-quiet with no sparks or static electricity generation.
