Wholesale Gas Bottle Cabinet Suppliers, Factories

Color: white yellow;

Specifications: 900*450*1900;

Purpose: Used to improve local exhaust ventilation, protect cylinders (gas bottles) from fire outside the cabinet and protect surrounding objects from internal fire, store chemical gases, and provide effective early warning.

Send Inquiry

Product Description

Gas Bottle Cabinet Overview

Steel gas cylinder cabinets are engineered specifically for the safe storage of gas cylinders. Their primary function is dual-purpose: protecting cylinders from external fire hazards and containing internal fires to protect the surrounding environment. Built using advanced all-steel technology, these cabinets feature an enhanced design that offers excellent load-bearing capacity, flexible combination options, and a professional aesthetic. Available in single, double, and triple configurations, they can be customized with automatic alarms and exhaust systems.

Technical Specifications & Construction

✓

Premium Material: Constructed from 1.2mm high-quality cold-rolled steel plate with electrostatic spraying for maximum corrosion and rust resistance.

✓

Enhanced Safety: Features tempered explosion-proof glass windows and a reinforced frame to withstand industrial demands.

✓

Smart Ventilation: Includes PASS holes for natural airflow and a dedicated 100mm upper space for ventilation system integration.

✓

Detection System: Compatible with smoke detectors and combustible gas sensors (Methane, Hydrogen, Acetylene, etc.) with automatic exhaust triggering.

✓

Secure Storage: Equipped with fixed safety chains to prevent tipping and an adjustable bottom pedal for ergonomic loading.

Product Display

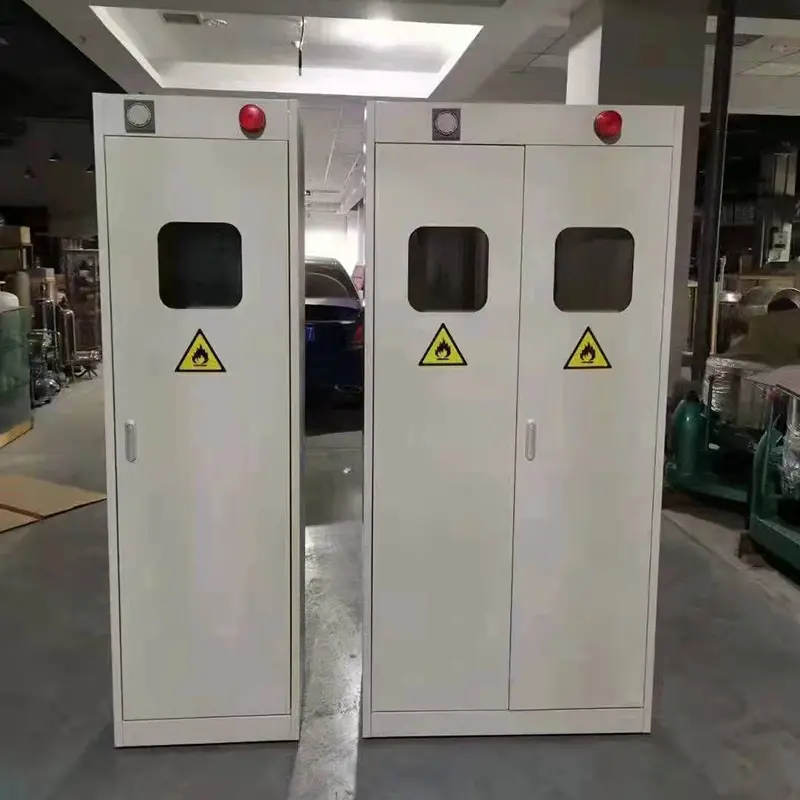

Gas cylinder storage cabinet single door

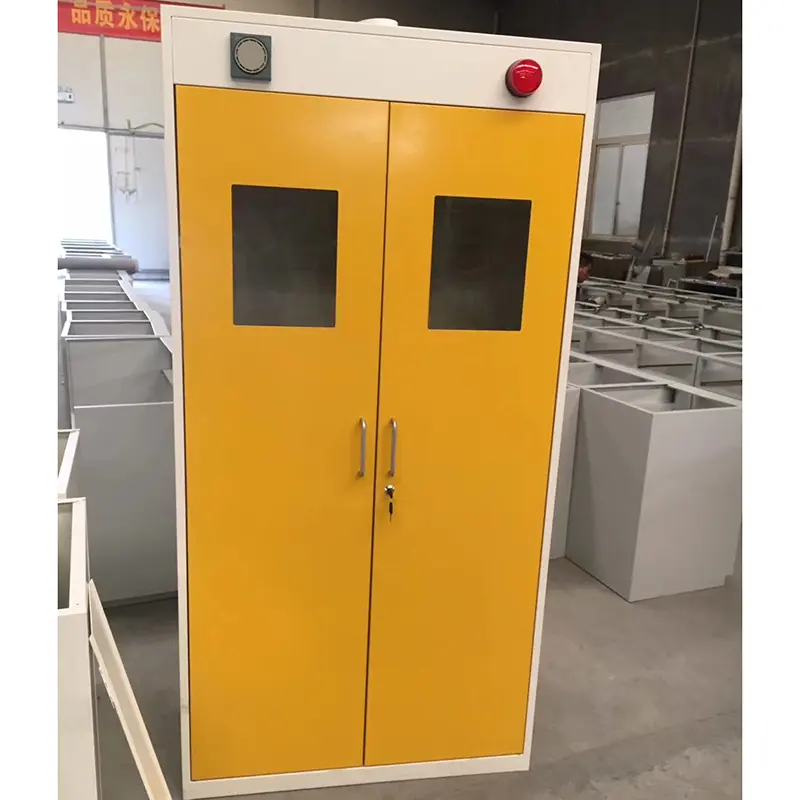

Gas bottle cabinet double door with glass

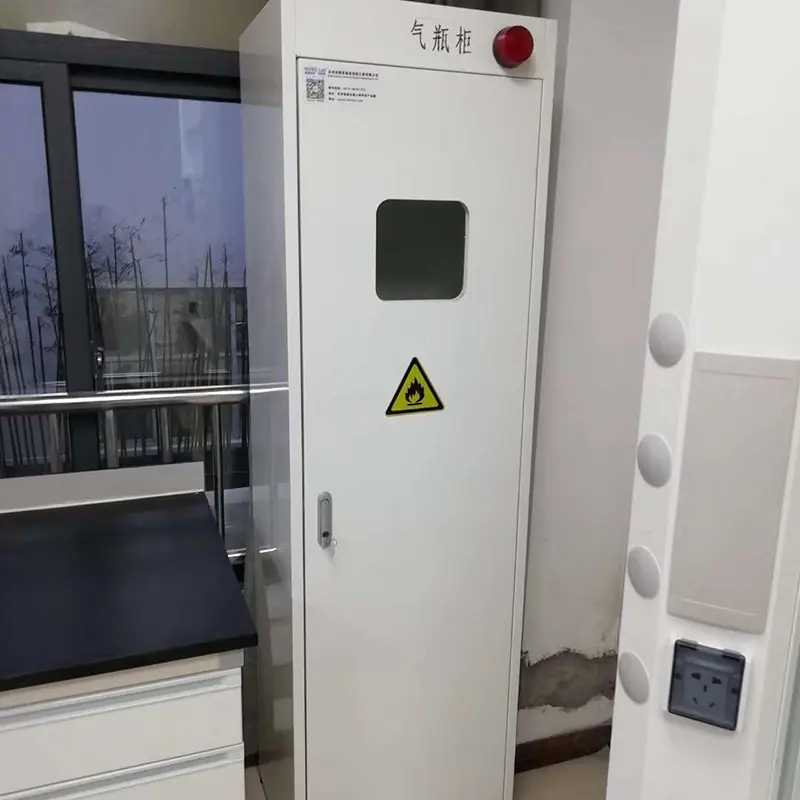

Laboratory gas cabinet construction details

Frequently Asked Questions

What types of gases can the alarm system detect?

The specialized combustible gas detector is designed to identify a variety of gases, including methane, acetylene, coal gas, and hydrogen.

How does the automatic exhaust system work?

When the gas concentration inside the cabinet reaches a pre-set limit, the alarm triggers and the exhaust fan automatically activates to discharge the gas outdoors.

What is the thickness of the steel used in the cabinet?

The entire cabinet is constructed from high-quality 1.2mm cold-rolled steel plates for superior strength and durability.

How are the cylinders secured inside the cabinet?

Each cabinet is equipped with durable fixed chains to ensure that gas cylinders remain upright and do not tip over during storage.

Are the cabinets resistant to chemical corrosion?

Yes, both the interior and exterior of the cabinet undergo electrostatic spraying to provide maximum resistance against corrosion, rust, and chemical damage.

What configurations are available for the cabinet doors?

You can choose between single or double-opening doors, with options for solid all-steel construction or a combination of steel and tempered explosion-proof glass windows.
