Buy Fume Hood Factory, Suppliers

Color: white, blue, off-white

Specifications: 1500*850*2350mm

Material: All steel, stainless steel, PP material

Send Inquiry

Product Description

Fume Hood Material and Structure

Dimensions: 1500W * 850D * 2350H mm
Main Body: 1.2mm thick horse steel first-grade cold-rolled galvanized steel plate, surface electrostatically sprayed with epoxy resin.
Mobile Window: 5mm tempered high-quality safety glass.
Sliding Mechanism: Elevator counterweight structure, allowing the door to stop at any position.
Guides & Handles: Corrosion-resistant PVC guides; PP type handles sprayed with epoxy resin.
Internal Construction: All internal connections are concealed and corrosion-resistant with no exposed screws.
Lining Material: 5mm anti-Bate board with excellent chemical resistance.
Structural Support: Sturdy double-layered frame construction.

Exhaust System: Circular exhaust outlet connected with a sleeve to reduce gas turbulence.
Operation Force: Sliding door requires no more than 2 Kg of force to move.
Safety Buffers: Equipped with rubber buffer devices for smooth opening and closing.
Visibility: Full glass front window providing an extensive visibility range.
Work Surface: Solid physical and chemical board surface resistant to harsh environments.
Lighting: Two quick-start fluorescent tubes (80 candles) with external ballasts and sealed safety glass panels.
Electrical: Three-wire grounded sockets, 220V, 10 amps.
Water Fittings: Brass faucet nozzles sprayed with epoxy resin; control handwheels color-coded and mounted externally.

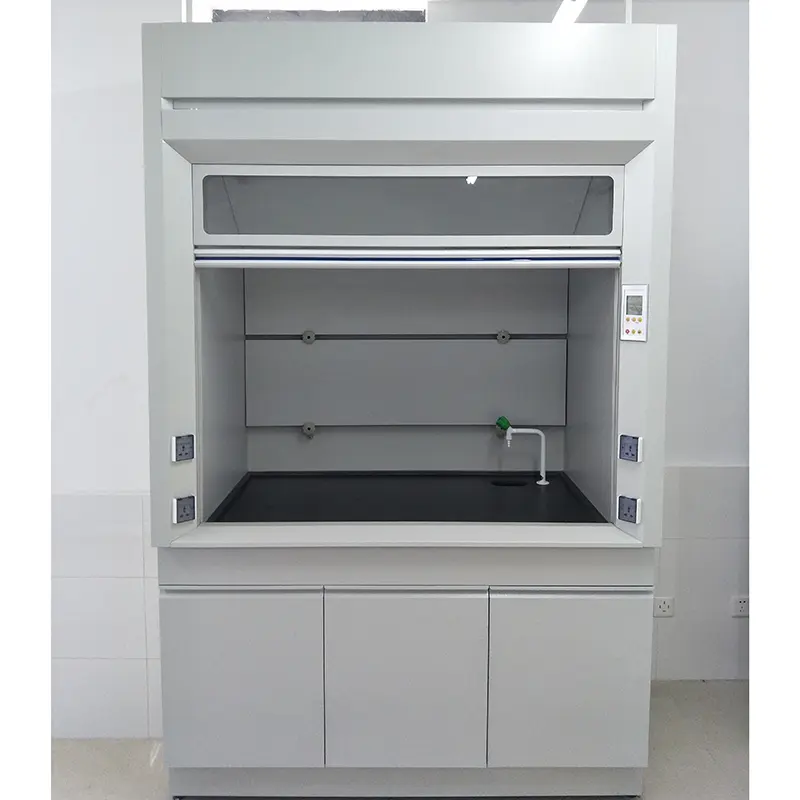

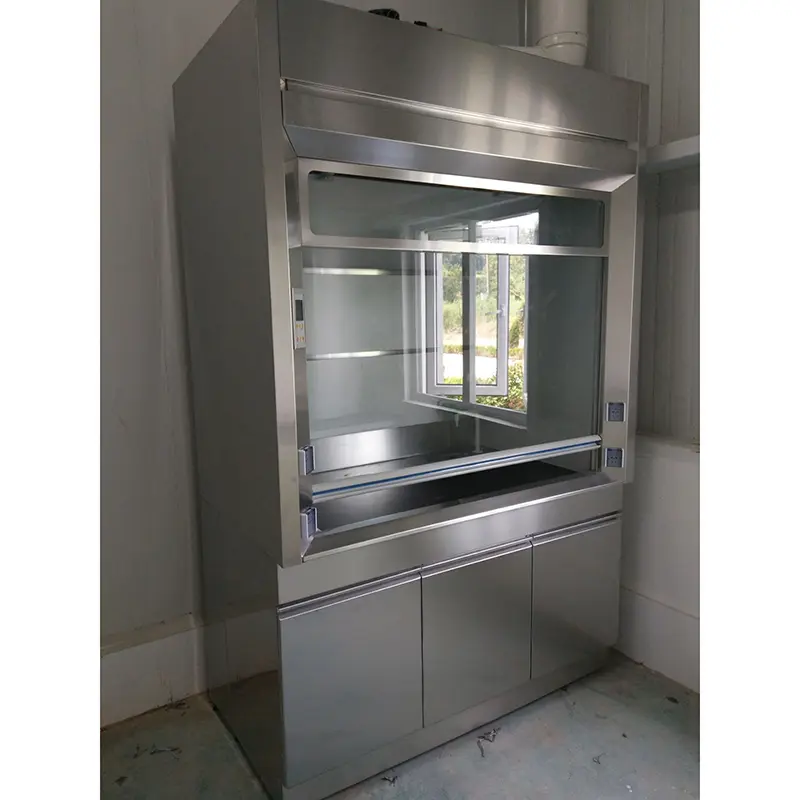

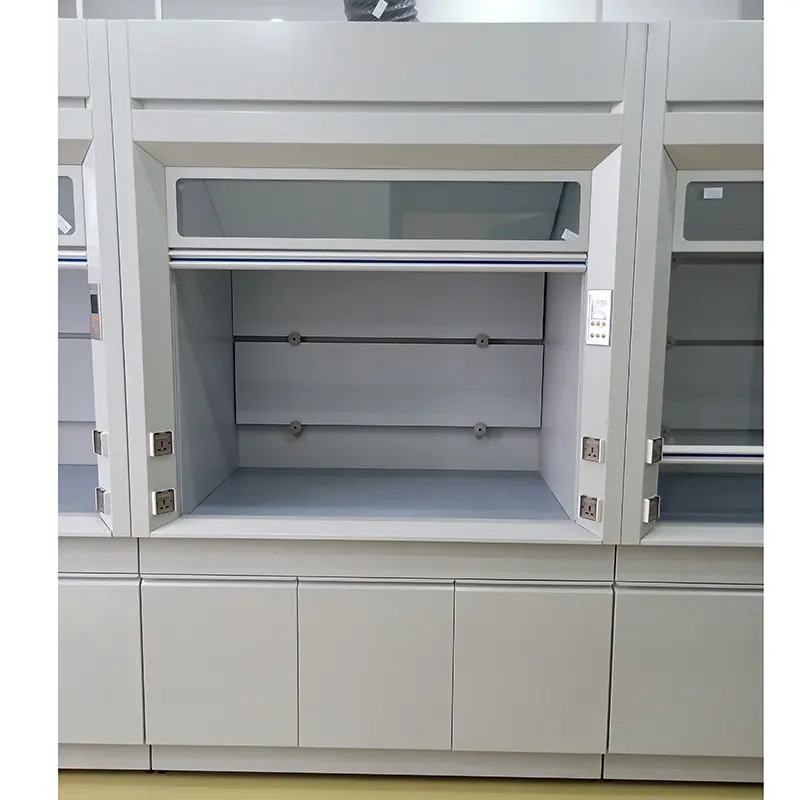

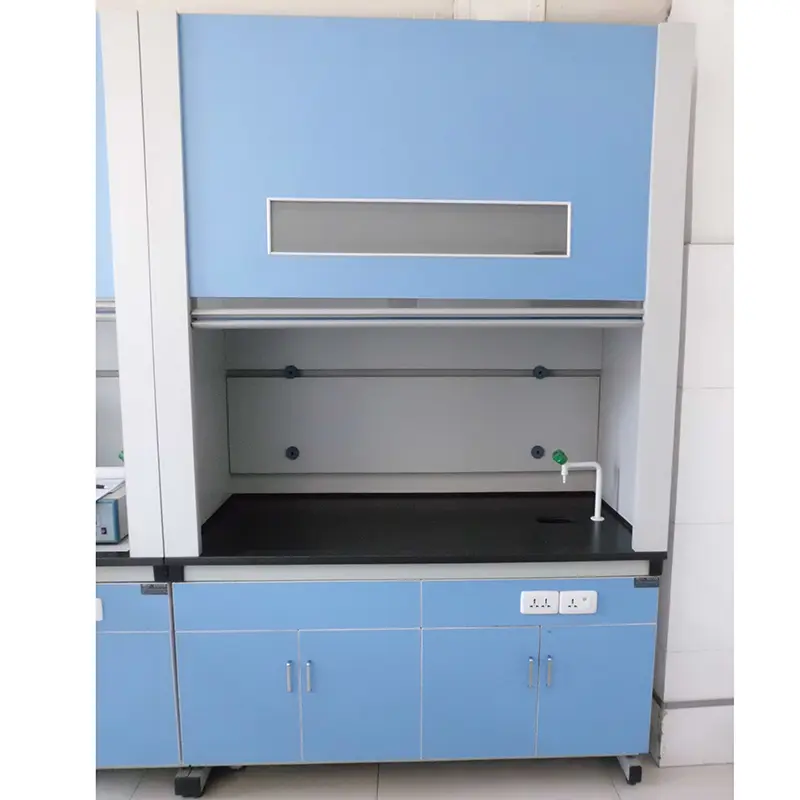

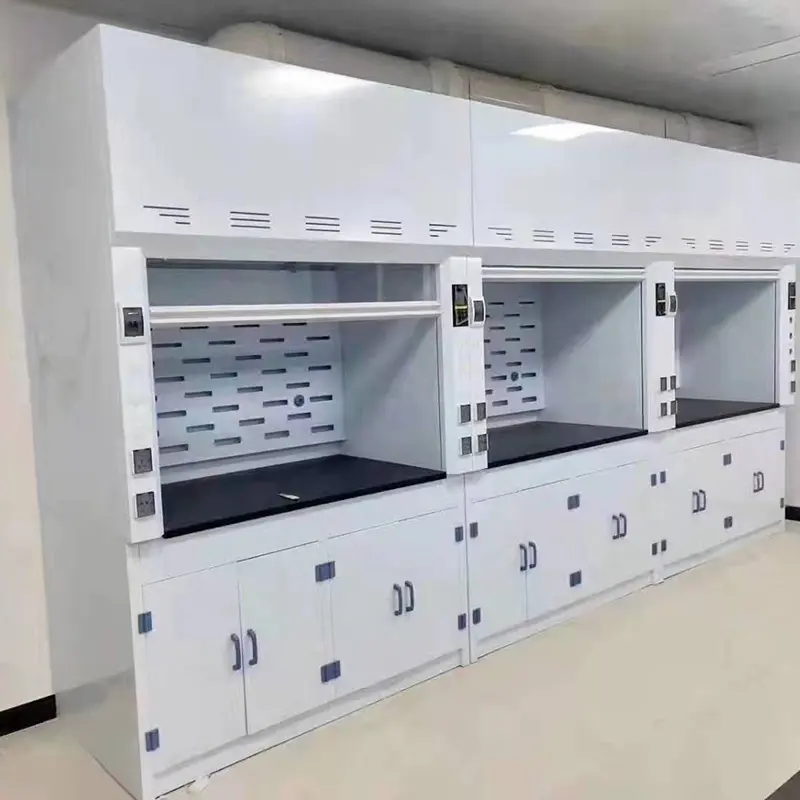

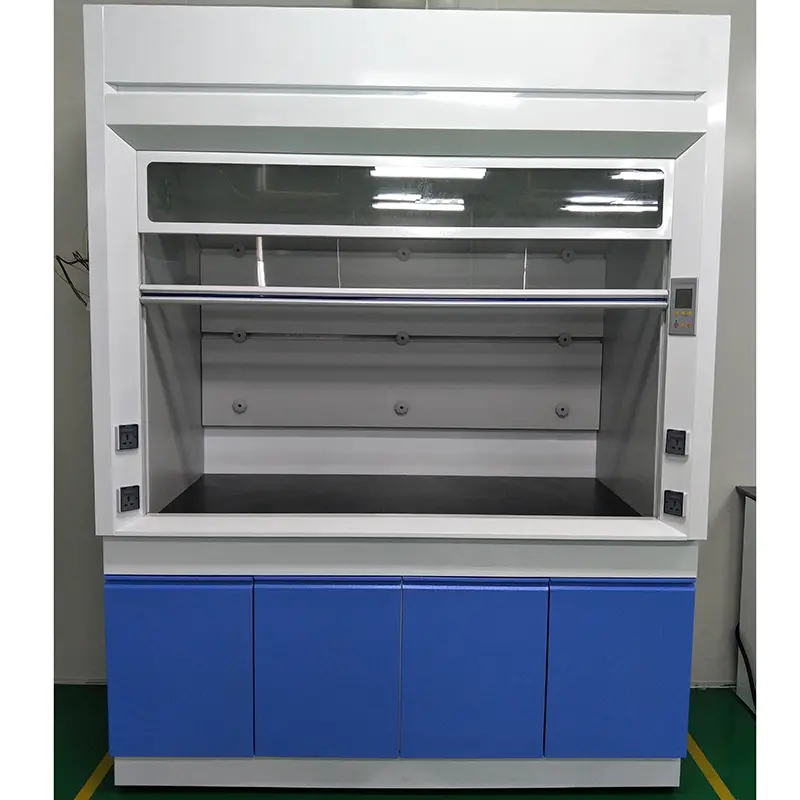

Product Display

Frequently Asked Questions

Q1: What are the primary materials used in the fume hood's construction? A: The fume hood is constructed from 1.2mm thick cold-rolled galvanized steel with an epoxy resin coating. The interior lining uses 5mm anti-Bate board for superior chemical resistance.

Q2: How safe is the glass window for laboratory operations? A: The mobile window is made of 5mm tempered high-quality safety glass, designed to withstand impacts and provide a clear, safe visibility range for users.

Q3: Can the sliding door be stopped at specific heights? A: Yes, the sliding door utilizes an elevator counterweight structure, allowing it to be stopped and held at any operating position with minimal force (less than 2 Kg).

Q4: What kind of lighting is integrated into the unit? A: The unit includes two quick-start fluorescent tubes providing 80 candles of brightness. The fixtures are sealed behind safety glass, and ballasts are located outside the cabinet for safety.

Q5: Are the internal components resistant to corrosion? A: Absolutely. All internal connections are concealed with no exposed screws. Fittings like faucets are made of brass and coated with epoxy resin, while the cup slots are molded from acid and alkali-resistant PP.

Q6: What are the electrical requirements for this fume hood? A: The fume hood is equipped with three-wire grounded sockets compatible with 220V power supplies at 10 amps.
