Wholesale Gas Purified Medicine Cabinet Factory, Suppliers

Product name: Gas purified medicine cabinet

Product model: JQXYPG

Size: 800*510*2080mm

Size: 1600*510*2080mm

Size: 819*354*725mm

The ductless gas purification medicine cabinet series is specially designed for the storage of toxic and harmful chemicals.

Suitable for various fields and various chemical types.

It can store most chemicals used in laboratories and purify toxic gases in the cabinet.

Purify laboratory air 24 hours a day, efficient and environmentally friendly.

Product Description

Material Description

01. Structure & Coating
Main material ≥1.2mm galvanized steel plate with epoxy resin electrostatic spraying and chemical-resistant lead-free coating.
02. Transparent Door Panel
≥6mm acrylic plate featuring excellent weather and chemical resistance, colorless, and fully light-transmissive.
03. Storage Components
One-piece PP tray (acid/alkali resistant) with adjustable height; optional perforated galvanized laminates available.
04. Safety Leakage Drawer
Polypropylene PP inner tank for corrosion resistance, preventing liquid leaks from broken reagent bottles.
  • Monitoring System: Real-time temperature and humidity tracking with adjustable alarm parameters for product safety.
  • Fan Monitoring: Failure alarm system with online speed adjustment to suit different chemical storage quantities.
  • Filter Saturation Alarm: Equipped with double-layer filters and dual VOC probes to monitor both indoor air and filter condition.
  • PSC Fan: US-imported 24V fan offering stable, ultra-quiet performance with no sparks or static electricity.
  • Filtration Standard: Follows ASTM standards; utilizes HEPA filters for particles >0.3um with 99.995% efficiency.

Detailed Standards

Shelf Load-bearing30kg
Air Treatment Capacity75m³/h / 220m³/h
Storage Capacity48, 160, 320 bottles (500ml)
Noise Volume40dBA
Voltage / Current220V/50Hz / 3A
Power Consumption42W, 76W, 110W
Filter Configuration1 set (8 blocks) / 2-4 sets (12 blocks)
Fans & Laminates1-2 Fans / 2, 8, 20 pieces
Control & DisplaySeven-inch LCD touch screen with 1 set Control System
Lighting & Safety1 set LED lights & 1 set Alarm system

Optional Features

Additional Laminates Wall-mounted Kit Filter Saturation Alarm Upgrade Acid-base Box Custom Filters Tempered/Explosion-proof Glass Brown/Frosted Acrylic

Product Display

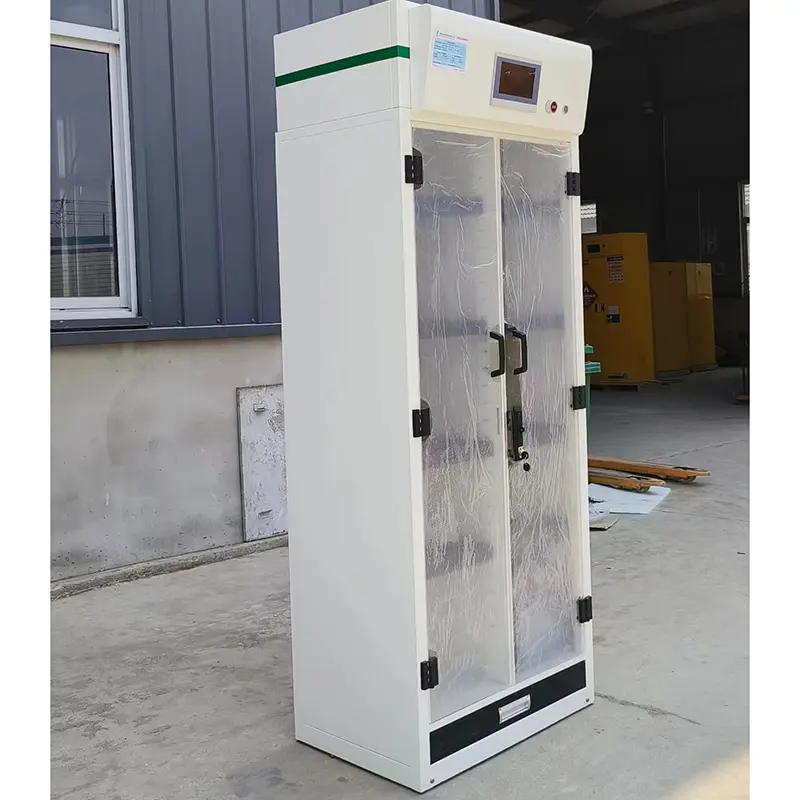

Gas-purified medicine cabinet front view

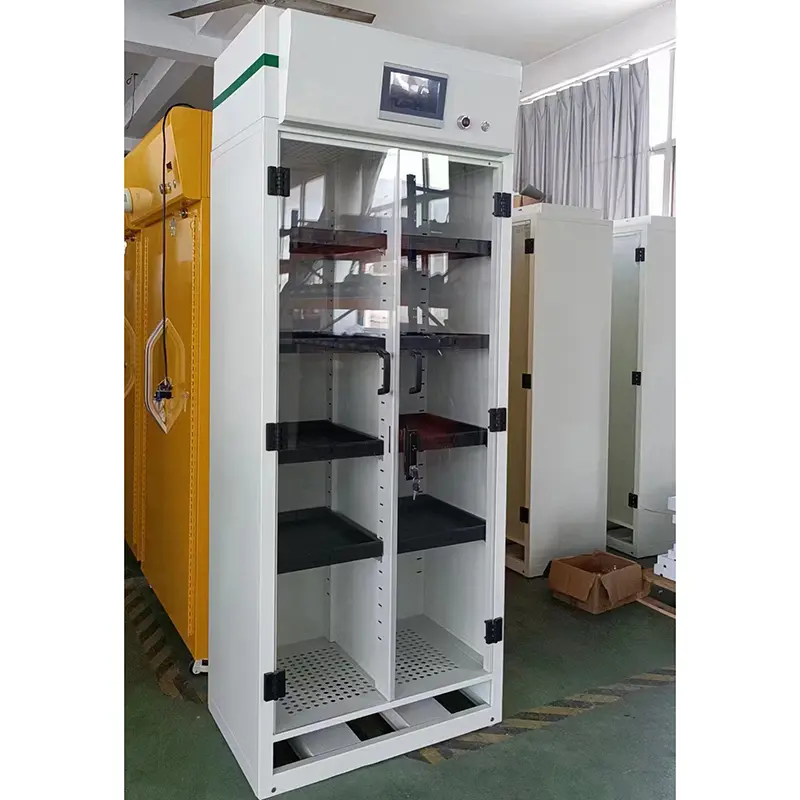

Gas-purified medicine cabinet side view

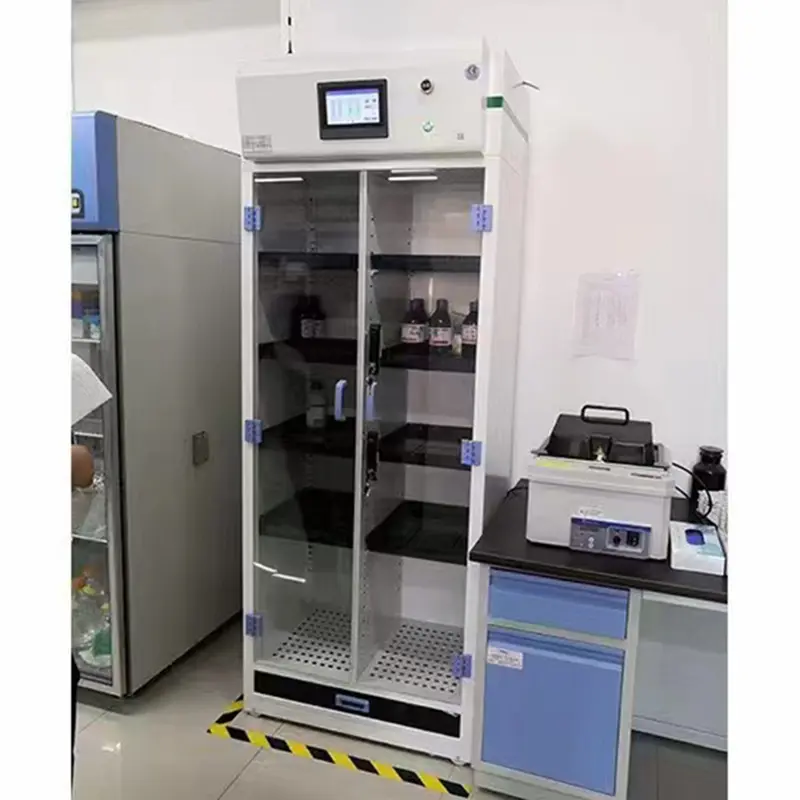

Gas-purified medicine cabinet interior view

Frequently Asked Questions

How does the gas-purified medicine cabinet protect lab air quality?
The cabinet uses a high-efficiency filtration system (including HEPA and molecular filters) to adsorb acidic and organic gases at the source, circulating purified air back into the room without needing external ducting.
When should I replace the filtration filters?
The unit is equipped with a filter saturation alarm system and dual VOC probes. When the VOC concentration exceeds the pre-set safety value, the system will trigger an alarm, indicating a filter replacement is required.
Is the cabinet suitable for storing highly corrosive acids?
Yes. The cabinet features a galvanized steel body with chemical-resistant coating and includes a polypropylene (PP) inner tank drawer specifically designed for acid and alkali resistance.
What is the advantage of the US-imported PSC fan?
The 24V PSC fan provides extremely stable airflow with ultra-quiet operation (40dBA). Crucially for laboratory safety, it is designed to produce no sparks or static electricity.
Can I monitor the environment inside the cabinet?
Absolutely. The seven-inch LCD touch screen displays real-time temperature and humidity levels, allowing you to ensure your chemicals are stored under optimal environmental conditions.
Does this cabinet require professional installation?
Since it is a ductless system, it is much easier to install than traditional ducted cabinets. It simply requires a standard 220V power connection and proper placement in the lab.
