Wholesale Safety Cabinet Supplier, Factory

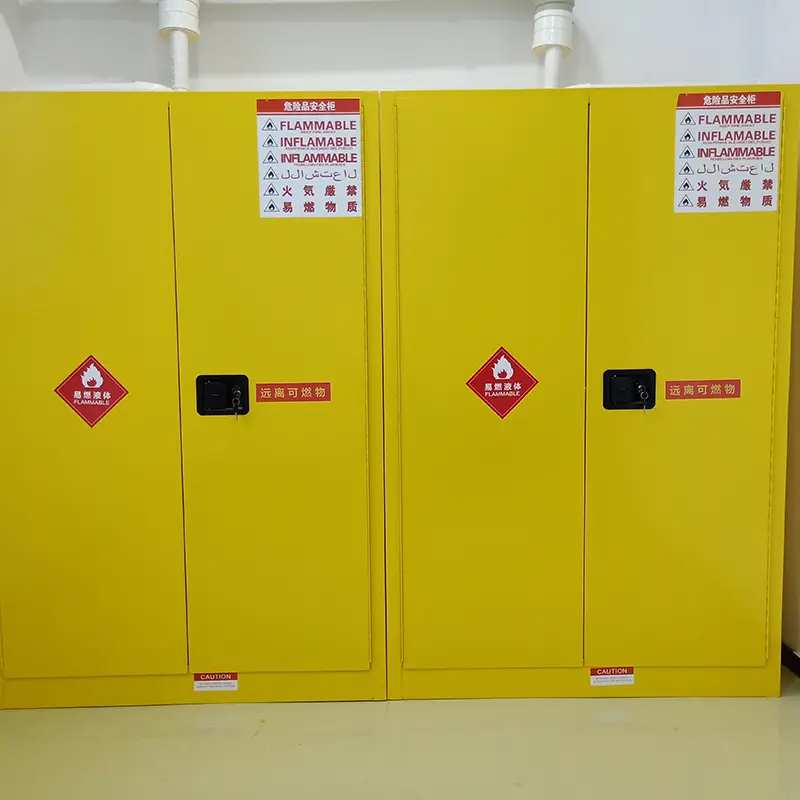

Product name: 45-gallon flammable liquid fire safety cabinet

Product model: AYT045Y

Material: High quality steel plate

Size: 1650×1090×460 (H×W×D/MM)

Weight: 141 kg

Volume: 45 gallons/170 liters

Color: yellow, blue

Packaging: honeycomb cardboard packaging or optional wooden box packaging

Technical indicators: Adjustable shelves: 2 pieces; Door type: double door, manual;

Standard accessories: 1 static grounding wire, 2 keys.

Specifications: OSHA 29 CFR 1910.106&NFPA CODE30 safety cabinet

Send Inquiry

Product Description

Key Features

Double-layer 1.2mm fire-proof steel construction with a 40mm air gap filled with specialized fire-proof materials for superior protection.

Fully welded, non-riveted structure ensures durability and reduces air gaps to protect contents during a fire.

High-finish chemical-resistant coating: Lead-free epoxy and polyester mixture prevents corrosion, moisture damage, and UV degradation.

Continuous piano hinge design ensures smooth operation and a secure, tight seal upon closing.

Highly visible reflective safety labels ensure the cabinet can be easily identified in smoky or low-light fire situations.

Explosion-proof performance integrated into the structural design for maximum safety.

Unique galvanized laminate shelves with 150 kg load capacity, designed to guide spills safely to the leak-proof reservoir.

50mm high anti-leakage reservoir at the base to contain chemical spills and comply with EPA requirements.

Electrostatic grounding conduction port included to facilitate connection and prevent static discharge in accordance with OSHA regulations.

Dual flame arrester vents located on cabinet sides to provide essential ventilation and exhaust control.

Compliance & Standards

Color Coding: Available in Yellow, Red, and Blue. Dimensions remain identical while allowing for categorized storage of specific chemical types.

Regulatory Compliance: Meets OSHA 29 CFR1910.106 and NFPA CODE30 Article 30 requirements for the standardized storage of flammable and hazardous liquids.

Industrial Strength: Metal structure design meets the rigorous requirements of NFPA 2000 edition Section 4.3 and Uniform Fire Code (UFC 79).

Product Gallery

Frequently Asked Questions

What safety standards do these fire cabinets follow?

Our safety cabinets fully comply with OSHA 29 CFR1910.106 and NFPA CODE30 Article 30 standards for the safe storage of flammable and explosive materials.

What is the load-bearing capacity of the internal shelves?

The unique galvanized laminate shelves are designed for heavy-duty industrial use, supporting a load-bearing capacity of up to 150 kg per shelf.

How does the cabinet handle accidental chemical spills?

Each cabinet features a 50mm high anti-leakage reservoir at the bottom, and shelves are designed with safety angles to guide spills directly into this leak-proof tank.

Can the cabinet prevent static electricity build-up?

Yes, in strict accordance with OSHA regulations, the cabinets are equipped with an electrostatic grounding conduction port to facilitate the connection of grounding wires.

Are different sizes or custom dimensions available?

Yes, while we offer standard yellow, red, and blue models, special sized cabinets can be customized to meet specific on-site space or storage requirements.

What material is used to enhance the fire-proof performance?

The cabinet is built using double-layer 1.2mm fire-proof steel plates with a 40mm air gap filled with specialized fire-resistant insulation materials.
